- Place of Origin: China
- Brand Name: Kingoro

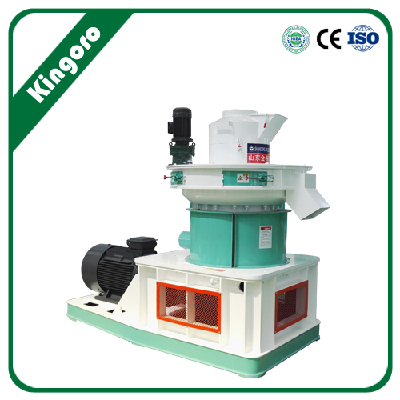

- Model Number: SZLH560
1)Application
This is a high-density pelletizing equipment which is widely used for the waste recycling in biomass energy plant, power plant, wood processing plant, chemical plant, food products factory, winery plant etc.
2)Raw material
Raw materials which are hard to be bonded and shaped such as husks (rice husk, sunflower seed husk, peanut shell etc), Wood scraps( branches, trunks, barks, sawdust etc) , crop straw, eucalyptus, palm thread, coffee husks, cocoa husks etc.
3)Product Advantage
1, Feeding Vertically
Raw material is feeding vertically and is directly in place, with stationary die and rotary pinch roller, the material is centrifugal and equispaced around the die.
2, Ring Die.
The die is double ring type, with vertical structure. Pelletizing room is also used for cooling, more options, and more gains.
3, Independent ejection device.
The independent ejection device ensures the forming rate of the pellet. The good design lowers the consumption and enhances the efficiency. It works 24 hours and lubricates automatically.
4, Environmental and energy-saving.
The main load-carrying component uses high alloy wear-resistant materials. The wearing parts’ lifetime doubles compared with other similar products.
- Place of Origin: China
- Brand Name: Kingoro
- Model Number: SZLH560
Model | Power(kw) | Capacit(t/h) | Weight(t) | Size(mm) |
SZLH380 | 30 | 0.3-0.5 | 1.8 | 1900x950x1600 |
SZLH470 | 55 | 0.8-1.0 | 2.6 | 2000x1550x1680 |
SZLH560 | 90 | 1.2-1.5 | 5.6 | 2600x1300x2300 |
SZLH760 | 160 | 1.5-2.5 | 8.6 | 3000x1500x2600 |
SZLH850 | 220 | 2.5-3.5 | 11.6 | 3780x1700x2950 |
