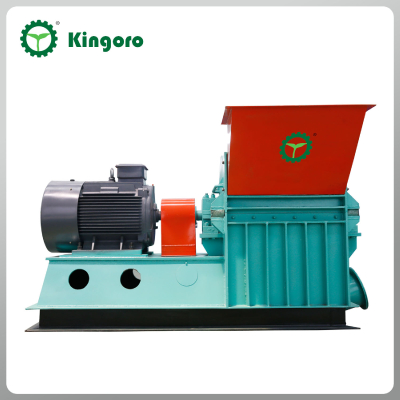

Approved Multi-Functional Straw Hammer Mill

Approved Multi-Functional Straw Hammer Mill

  • Min.Order Quantity: 10 Sets
  • Supply Ability: 100 Sets per Month
  • Port: china ports
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2013-12-20
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  95*40*40(cm)
  • Place of Origin:  china
  • Brand Name:  Kingoro
  • Model Number:  Multifunction Crusher
  • Weight: 70.000 kg

Application

A hammer mill is a mill whose purpose is to shred or crush aggregate material into smaller pieces(below 5mm) by the repeated blows of little hammers. These machines have many sorts of applications in many industries, including:

Ethanol plants (grains)
A farm machine, which mills grain into coarse flour to be fed to livestock
Fluff pulp defiberizing
Fruit juice production
Grinding used shipping pallets for mulch
Milling grain
Sawmills, size reduction of trim scrap and planer shavings into boiler fuel or mulch

Small grain hammermills can be operated on household current. Large hammer mills used in automobile shredders may be driven by diesel or electric motors ranging from 2000 to over 5000 horsepower (1.5 - 3.7MW).

The screenless hammer mill uses air flow to separate small particles from larger ones. It is designed to be more reliable, and is also claimed to be much cheaper and more energy efficient than regular hammermills. The design & structure of the hammermill is always determined by the end use.

Hammer Crusher /Hammer mill Working Principle:
The motor drives the rotor rotate of the hammer crusher at a high speed through the belt, and on the rotor there are series hammers, when the material get into the working areas of hammers, they are crushed by the rotating hammers of the hammer crusher with high rotation speed, the products which a re crushed to meet the required size can be discharged by the outlet and become the final products, the large size products are brought back to the crushed area by the hammers of the hammer crusher for being recrushed until they reached the required size.


Raw material

Plant stalk, rice straw, saw dust, woods, branches and other organic wastes.Widely used in industrial sectors such as biomass energy, pharmacy, food, chemical engineering, scientific research, feed, organic fertilizer and breeding.


Specification

ModelPower(KW)Capacity(t/h)
SG65x27220.5-0.7
SG65x5537-551.0-1.5
SG65x7555-751.5-2.0
SG65x10090-1102.0-3.0


Product Advantage

The inlet can be fit for all kinds of raw materials, since the inlet is titled.

1, Multifunction

This machine has two series which are single-shift type and double-shift type. The machine's capacity is big and the efficiency is high. It could be operated and maintained easily.

2, Good-quality End Products

The machine is used for crushing dry and oil-free feeds and the end products are very fine.

3, Durable in Use

The corners of the hammer are bead welded with high hardness material like carbon tungsten alloy. The welding layer thickness is 1-3mm. The lifetime is 7- 8 times by normal 65Mn overall quenching hammer.

4, Pollution-free and High Efficiency

The inner cooling structure of the crusher could avoid the high-temperature damage which comes from the rubbing, and increase the life of the machine. The machine is equipped with dust collector which avoids the powdery pollution. All in all, this machine is low temperature with small noise and high efficiency.


  • Size:  95*40*40(cm)
  • Place of Origin:  china
  • Brand Name:  Kingoro
  • Model Number:  Multifunction Crusher
  • Weight: 70.000 kg
