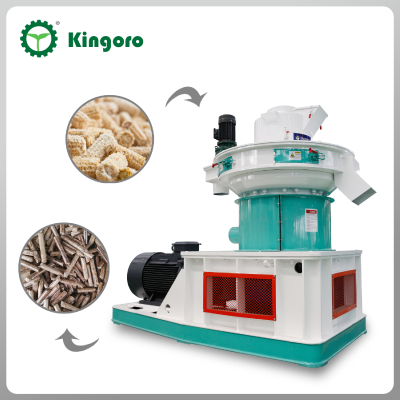

Crop Waste Double Stack Mold Pellet Machine

Crop Waste Double Stack Mold Pellet Machine

  • Min.Order Quantity: 1 Set
  • Supply Ability: 1 Set per Quarter
  • Port: Qingdao
  • Payment Terms: L/C
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2013-12-20
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  China
  • Brand Name:  Kingoro
  • Model Number:  SZLH 560

Features of the product:

1. It is widely used for pellet of light substance, such as wood chips, sawdust, straw, pasture, chrysanthemum, palm leaf and so on.

2. The feeder's special structure makes materials conveyed evenly, it is specially designed for pellet of light substance with the density of 0.3-0.6g/ cm3.

3. Feeder, conditioner and chute are made of stainless steel with long service life.

4. It is with magnet and over load protection system, which can protect machine well during production.

5. Feeder is with a variable speed controlled to meet different outputs requirements.

6. It makes gear directly-connecting as the driver, and is with quick-release die fixed by clamps, which can increase the output 15% more than the same type machine with belt-convey.

7. Vertical feeding, directly in pelletizing room, Die is static, rollers rotate; material are evenly distributed around pelletizing room because of centrifugal force, no block.

8. Double-layer die. Two layers both can be used for reduce the cost. High efficiency and save energy. Pelletizing room is also used for cooling, more options, and more gains.

9. Independent and frequent conversion discharge device can ensure the formation rate of pellet.

10. Ring die and vertical structure are good for cooling the pelletizing room.

11. Automatic oiling.

12.The machine adopt imported SKF or NSK bearings, the motor brand is china famous  brand .

Working principle of the product:

The pellet mill is easy to operate, we will install the machine and test machine well before delivery, once user connect it with electric power, and the raw material is delivered into the Pellet Machine through a conveyor and then conveyed into a rotating ring die by a feeder.

Finely pulverized material will be pressed into ring die through two rotating press rollers. The resulting pressure compresses the material and extrudes it through the holes in the die. The pellet will be out directly.

Vertical Ring Die Pellet Mills, have absorbed the quintessence of pellet mills in both domestic and international market, adopt "double-layer die" as the unique structure;Rollers are made of abrasion-proof alloy steel,improving the using lifetime of spare parts greatly;For the drive parts,the grease is filtrated automatically lubricated properly.Special design,rational structure,low power consumption,high efficiency,durable use,supplying the blank of vertical feeding of ring-die pellet mill at home,reach the international advanced level.Specialized for biomass pellets making with crushed powder of materials like Wood Chips,Branches,Tree Trunk,Barks,Plant Waste, Crop Straw,Ricehusk,Peanut shells,Bamboo and Palm fiber, etc.In the ring die pellet mill, there are radial slot throughout the die. Powder is fed into the inside of the die and spreaders evenly distribute the powder. Two rollers then compress the powder through the die holes. Two cutters are used to cut the pellets free from the outside of the die. Pellet mill used to produce animal feed, wood pellets, and fuel pellets for use in a pellet stove. Which is widely adopted in commercial and large scaleproduction lines.

Requirements for the raw material:

All kinds of wood waste or agro-forestry waste can be used, such as:

Wood waste, scobs, branch, palm tree, sugarcane residue, sawdust, medical slag, hay, discarded edible fungus bags.

Bean stalk, wheat stalk ,corn stalk, cotton stalks, sunflower stalks, mustard stalk, rice stalks, coffee husk, cotton shell, peanut shell, rice shell, coconut shell.

Livestock and poultry's waste, tea waste, tea waste, forestry wastes, forestry wastes, wood chips and many other organic waste resources.



Specification of bark pelletizer China:


*Name:bark pelletizer      *Condition:New

*Model Series:SZLH series  *Color:Customized

*Min Order:1               *Trademark:Kingoro

*Region :China             *Certification:CE ISO9001 SGS


Parameter of bark pelletizer China:

Model Power(KW)Pellet diameter(MM)ring die diameter(MM)Output(T/H)Dimension(mm)

SZLP47045kwΦ4--Φ124700.7-11500*1600*1800

SZLP56090KWΦ4--Φ125601.2-1.52600*1300*2300

SZLP760160KWΦ4--Φ127601.8-2.02900*1300*2400

SZLP850220KWΦ4--Φ128602.5-3.03750*1650*3250


Application of bark pelletizer China:

Used for biomass fuel plant,power plant,chemical plant,feed farms,organic fertilizer factory,feed mills,ect.


Delivery and packing of bark pelletizer:

*Delicery time:8-10 working days.

*packing :wooden case


Company information:

Shandong Kingoro Machinery is a professional bark pelletizer  manufactuer in china, which is located in jinan ,shandong china,with more than 20 years of experience in machinery industry.
