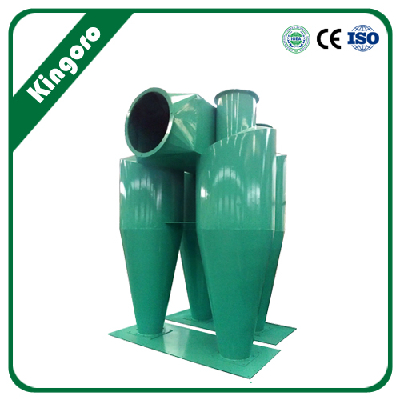

cyclone dust collector is an efficient dust collector, dust removal efficiency more than 95%, body resistance is lower than 900Pa,it is able to run normal with the existing boiler induced draft fan .It has good adaptability, dust removal efficiency is more than 94% when under 70% load.
Cyclones is made of Cast iron or ceramic, thickness more than 600mm, so it has good wear resistence.
It is the ideal equipment to remove industrial boiler flue gas dust and other dust.
Type | XD-Ⅱ-0.5 | XD-Ⅱ-1 | XD-Ⅱ-2 | XD-Ⅱ-4 | XD-Ⅱ-6 | XD-Ⅱ-10 | XD-Ⅱ-20 | XD-Ⅱ-35 |
boiler(t/h) | 0.5 | 1 | 2 | 4 | 6 | 10 | 20 | 35 |
Air Volume(M^3/h) | 1500 | 3000 | 6000 | 12000 | 18000 | 30000 | 60000 | 105000 |
efficiency(%) | >60 | |||||||
Body resistance(Pa) | <900 | |||||||
particle size(dc50um) | 3.05 | |||||||
Weight(kg) | 310 | 570 | 960 | 1900 | 2910 | 6100 | 11750 | 20300 |
